Summary Description of the Feature
The version comparison tool lets you view two versions of a project side by side. This allows you to review all the changes made to the documents, by you or your collaborators, in each version.
Access to Feature

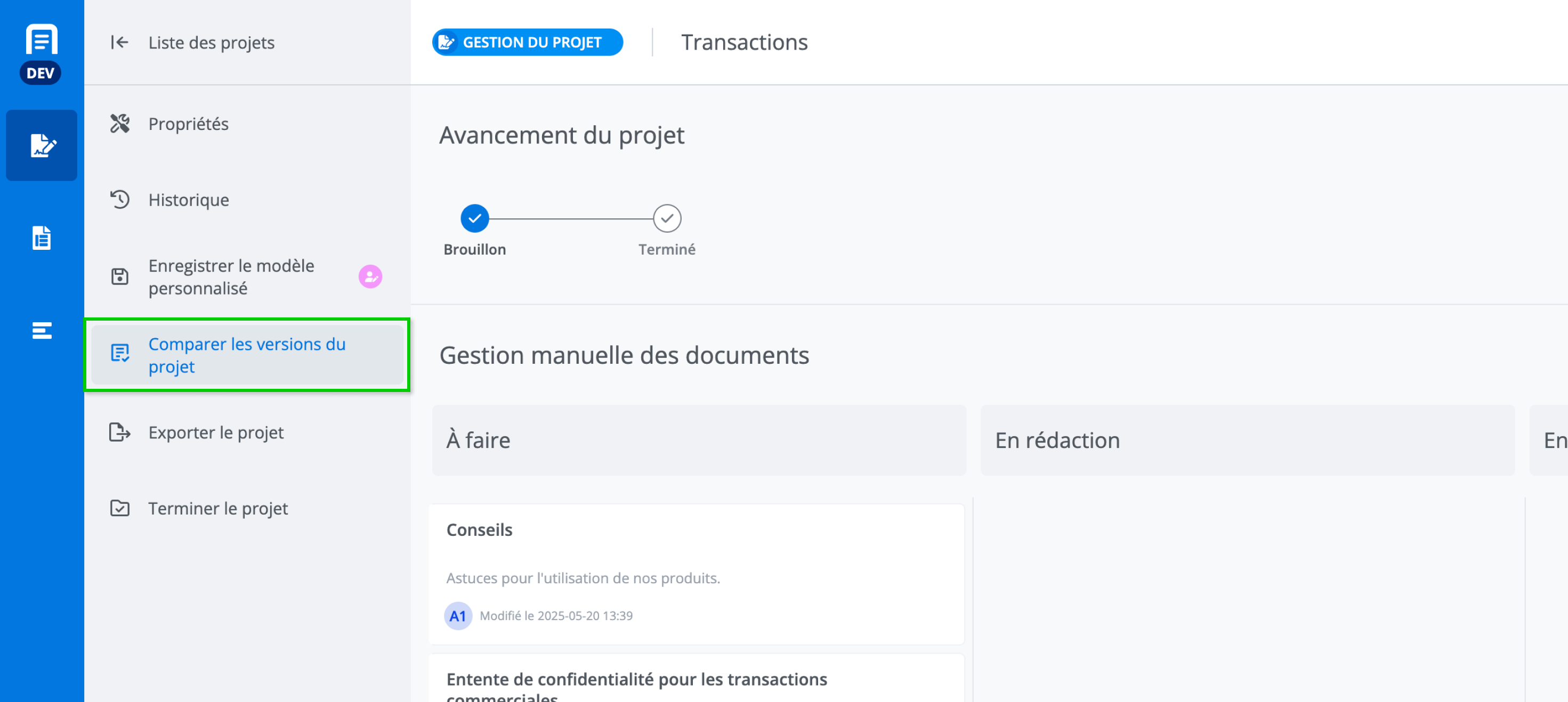

Version comparison is accessible from the features menu by clicking on Compare project versions
Detailed Description of the Feature

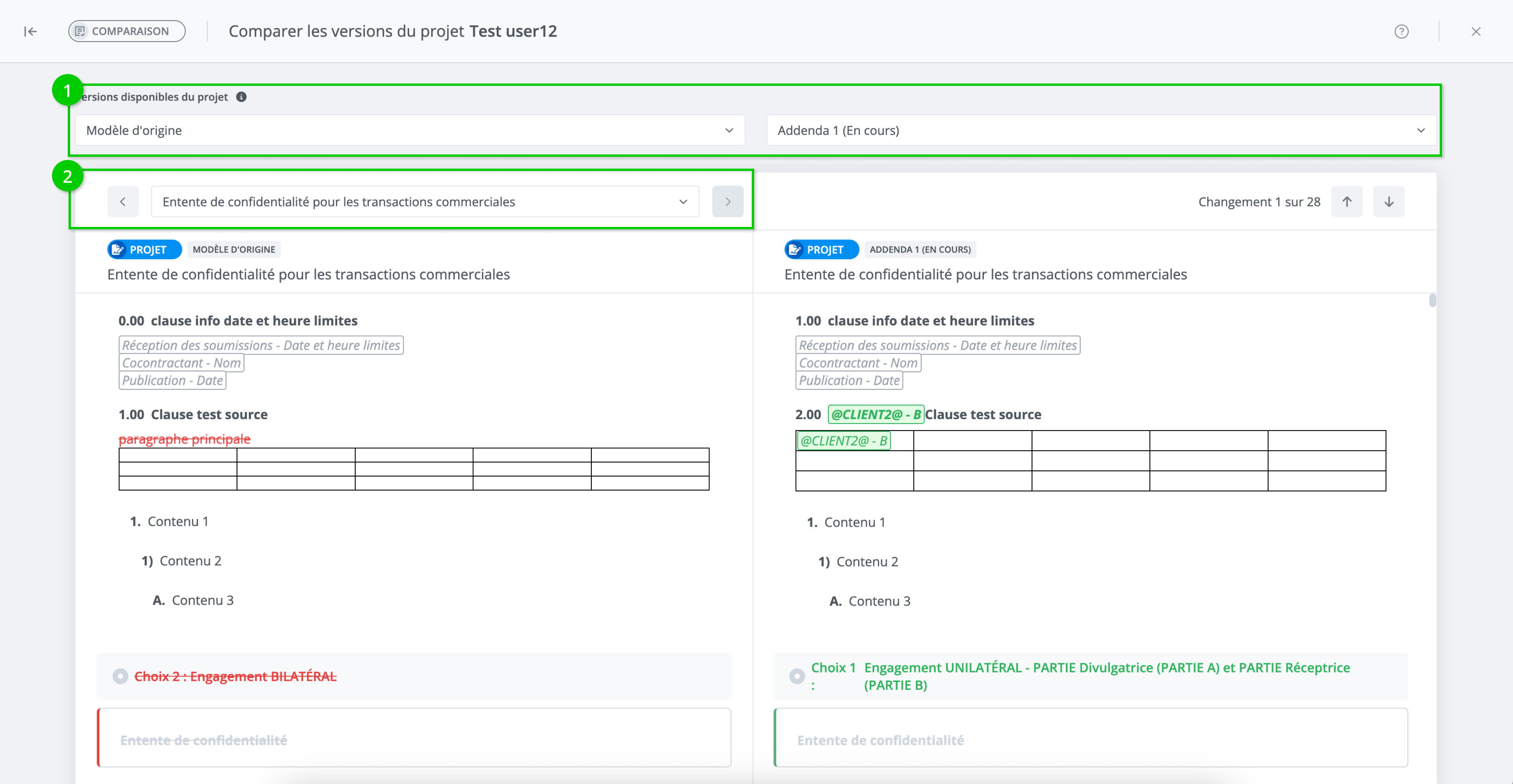

The version comparison interface is vertically split into two sections, each displaying the content of one version.
Since a project can contain multiple documents, the user must first choose the two project versions to compare (1), then select the document to compare (2). The differences between the two versions of the document are highlighted in the interface.
Displaying Differences Between Versions
Colour Codes
Here are the colors representing the different types of changes indicated in the document:
Red = Removed or deleted content
Green = Added content
Orange = Moved content

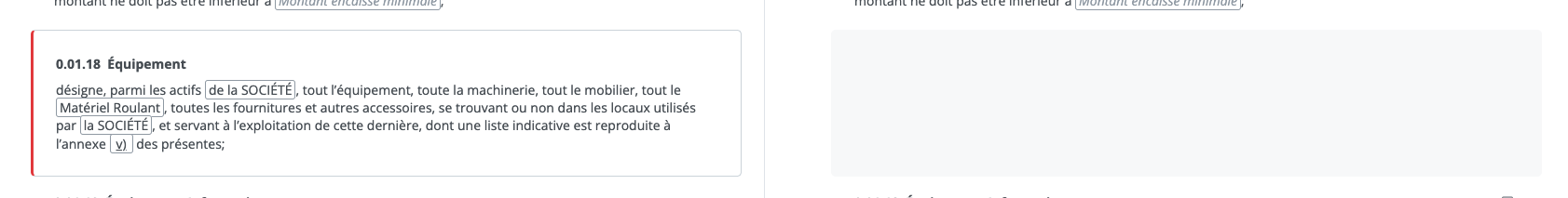

Displaying Removed Content
Removed items are displayed in the version selected on the left. Since they are no longer present in the version selected on the right, they are represented by a grayed-out space.
The system displays the following removed items:
-
Sections,
-
Clauses,
-
Schedules,
-
Paragraphs of clauses,
-
Paragraphs of schedules.

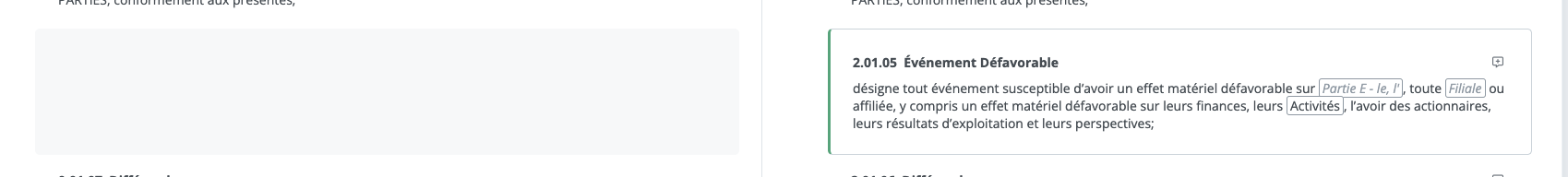

Displaying Added Content
Added items are displayed in the version selected on the right. Since they are not present in the version selected on the left, they are represented by a grayed-out space.
The system displays the following added items:
-
Sections,
-
Clauses,
-
Schedules,
-
Paragraphs of clauses,
-
Paragraphs of schedules.

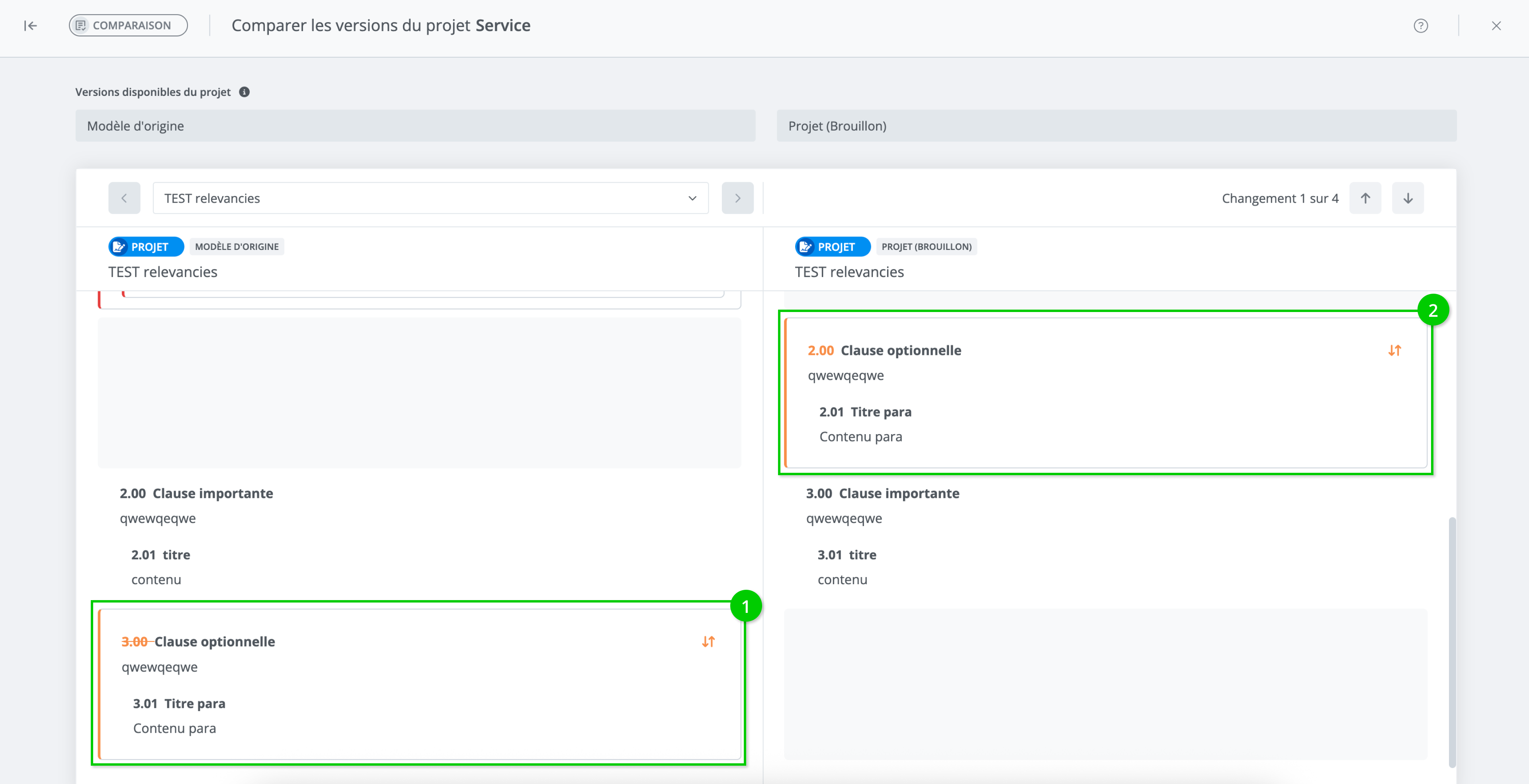

Displaying Moved Content
-
The moved content is displayed in its original location in the version on the left;
-
And in its new location in the version on the right.
Navigating Between Moved Content
Click on View Moved Item to navigate between the content’s location in the version on the left and its new location in the version on the right.

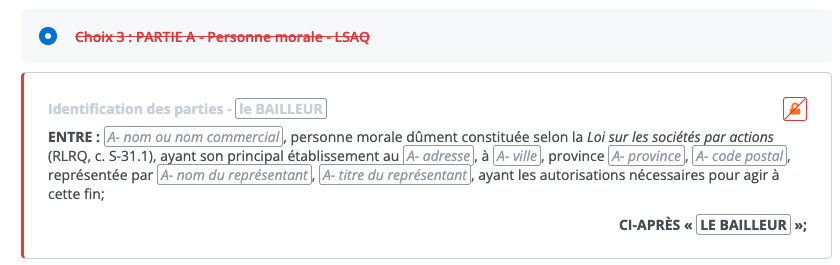

Display Selected Alternatives in the Document
The selection of an alternative is displayed as follows:
-
Struck-through description in red: content of the alternative selected in the version on the left;
-
Description in green: content of the newly selected alternative in the version on the right.
|
Original alternative |
Selected alternative |
|---|---|
|
|

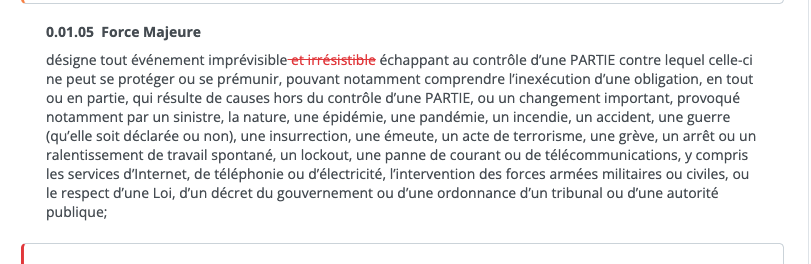

Displaying Changes Made to the Text
All changes made to the text using the Edit for This Project tool are displayed within the text.
-
Deleted text: in red and struck through in the version on the left,
-
Text added in the document being drafted: in green in the version on the right.
|
Deleted text |

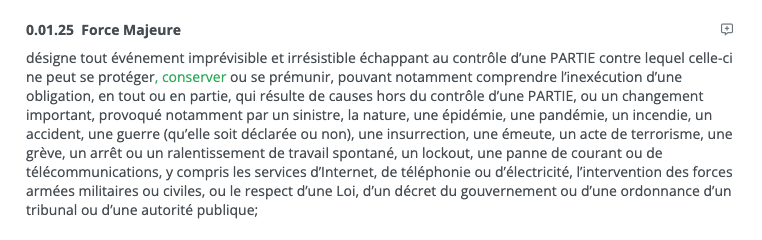

Text added |
|---|---|
|
|

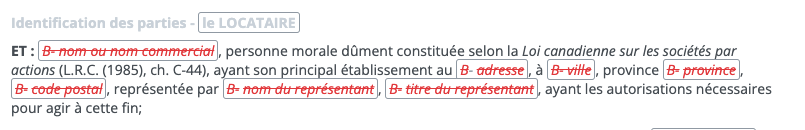

Displaying Filled Fields
When fields are filled in the document:
-
Field labels are struck through and in red in the version on the left.
-
Field values entered in the document are displayed in green in the version on the right.
|

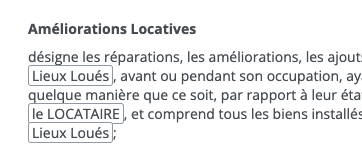

Original Wording |

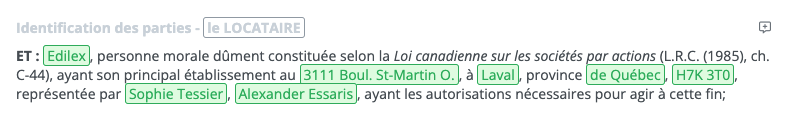

New field values |
|---|---|
|
|
Displaying a Change in Content Relevance
When the relevance (lock icon) of content has been changed, the system displays:
-
Relevance in the version on the left: red, struck-through border (on the left),
-
New relevance: green border (on the right)
|

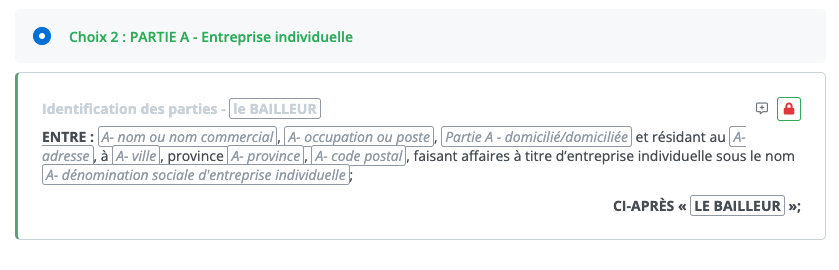

Original relevance |
New relevance |
|---|---|
|
|

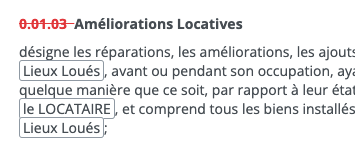

Displaying Removal of Content Numbering
When you remove the numbering associated with content, it is displayed:
-
In red in the original template,
-
Does not appear in the current document.
|
Original numbering |
New numbering |
|---|---|
|
|

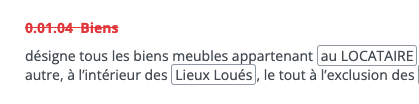

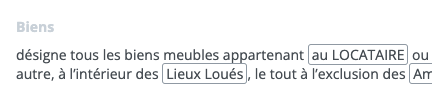

Displaying Removal of a Content’s Title
When you remove the title of content, it is displayed:
-
In red and struck through in the version on the left,
-
Grayed out in the version on the right.
|
Removed title display |
Removed title display |
|---|---|
|
|
